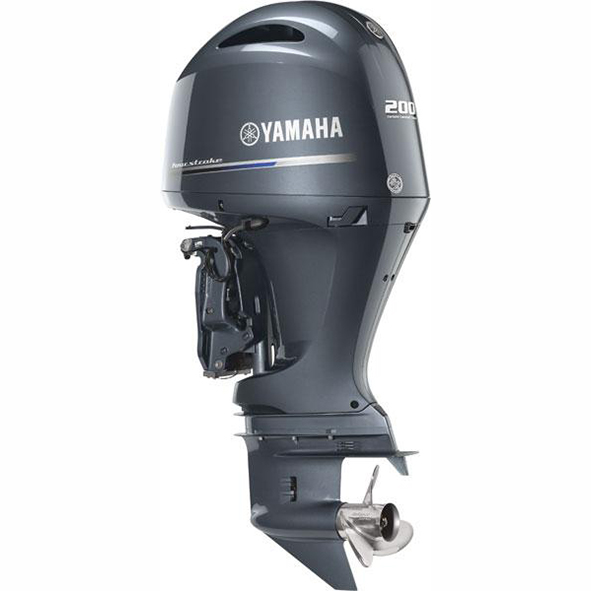

Yamaha In-Line F200 Four Stroke

Print Full Specs

Engine Type In-Line 4 Cylinder
Displacement 2785cc (2.8L)
Bore x Stroke 96 x 96.2mm (3.78 x 3.79in)
Prop Shaft Horsepower 200 hp @ 5500 rpm
Compression Ratio 10.3:1
Fuel Induction EFI (DOHC)
Exhaust Through Propeller
Intake Single Throttle Valve
Ignition TCI Microcomputer
Spark Plug LFR6A-11
Alternator Output 50 Amp
Starting System Electric with Power Trim & Tilt
Lubrication Wet Sump
Engine Oil Capacity 4.5L/4.3L w/without filter
Full Throttle RPM Range 5000 ~ 6000 rpm
Cooling Thermostatic Control
Recommended Engine Oil Yamalube® 4M (See owner's manual)
Recommended Fuel Regular Unleaded (Minimum Pump Octane 89)
Recommended Fuel Filtration Yamaha 10 Micron Fuel/Water Separating Filter (external)
Ethanol Blend Limit 10% Maximum
Gear Ratio (26:14) 1.86:1
Gear Shift Forward, Neutral, Reverse
Shaft Length L=20" X=25"
Degree of Tilt 70°
Degree of Trim -4° through +16°
C.A.R.B. Rating 3-Star
Dry Weight 221 kg (487 lb)
Mounting Centers 28.6"
Steering Angle (maximum) 32° from center, either direction
Warranty 3 Year Limited Pleasure Boat - 1 Year Limited Commercial
